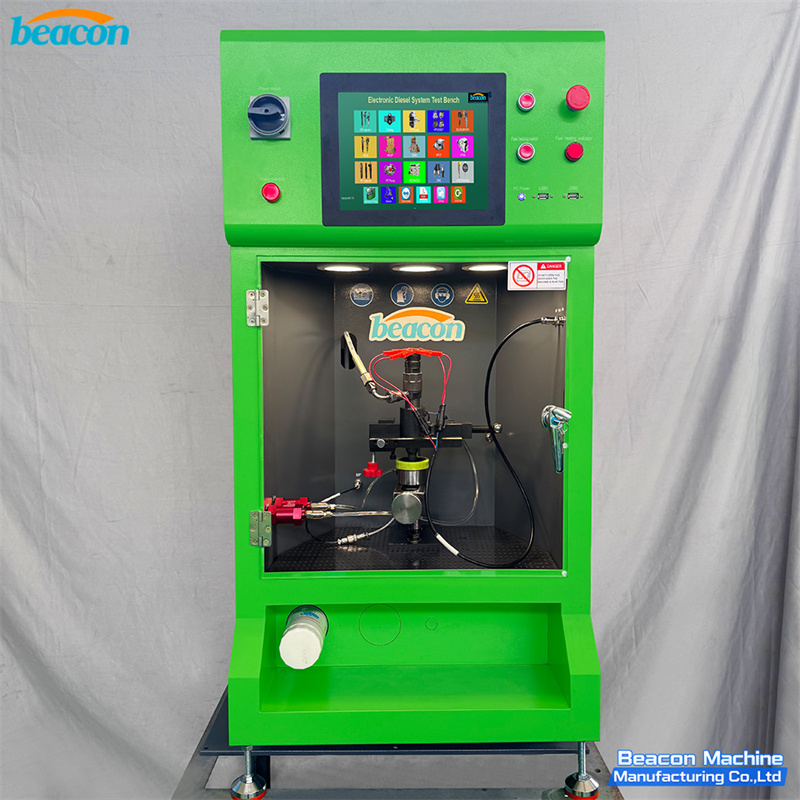

EPS290 Common Rail Injector Test Bench

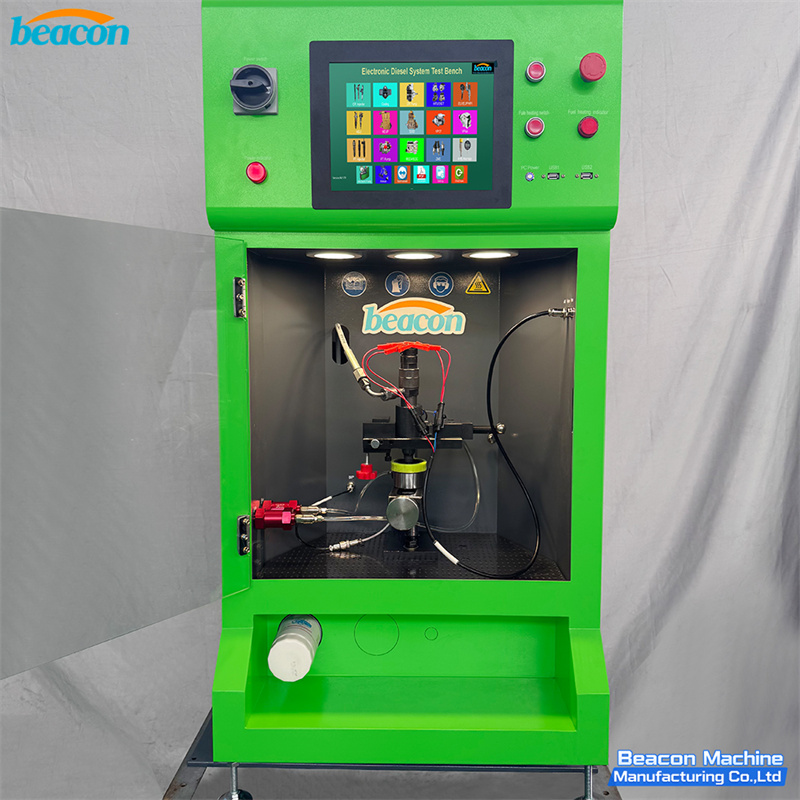

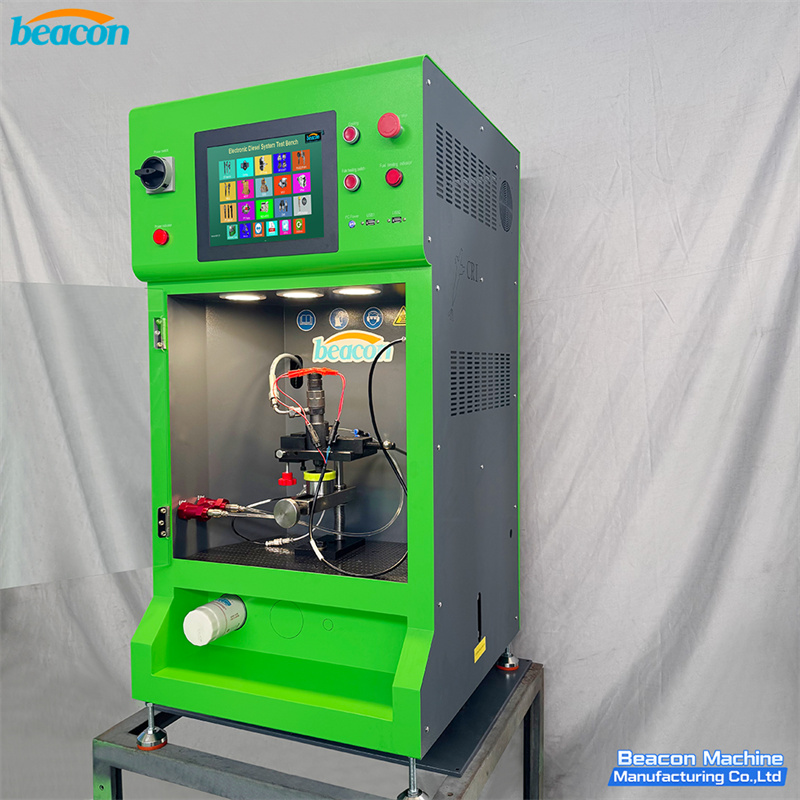

The EPS290 Common Rail Injector Test Bench is a compact, high-efficiency single-channel testing platform engineered for diagnosing modern diesel fuel systems. Standardized with a 2.6KW single-phase 220V configuration, this advanced bench incorporates an industrial flow meter and a genuine Bosch CP1H high-pressure common rail pump to provide original factory-level testing precision within a streamlined footprint.

Powered by an intelligent control system with a high-definition touch screen, the EPS290 natively supports automatic testing for high-speed solenoid valve injectors as well as third-generation piezoelectric crystal injectors. Pre-loaded with an expansive database covering thousands of calibration profiles, it delivers premium multi-brand diagnostic capabilities tailored for professional diesel repair workshops, automotive laboratories, and fleet service garages.

Common Rail Injector Test Bench, Diesel Injector Tester, Common Rail Injector Calibration

EPS290 Common Rail Injector Test Bench Преимущества

Dual Injector Technology Support: Seamlessly drives and calibrates standard high-speed solenoid valve injectors alongside advanced third-generation piezoelectric crystal injectors.
Intelligent Pressure Management: Features a specialized PID algorithm linked with multiple rail pressure sensor profiles (Bosch, Denso, Delphi) to deliver rapid, rock-solid pressure adjustments up to 200MPa.

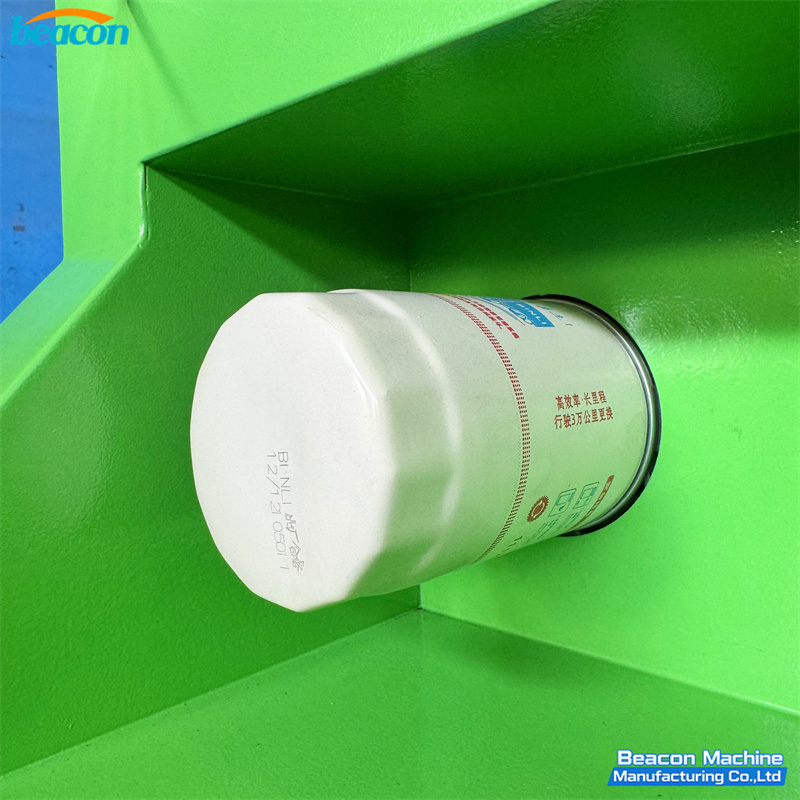

Precision Flow Meter Measurement: Utilizes a digital flow meter alongside a dedicated 3μ fuel filtering system to lock in precise delivery and return data.
Comprehensive Coding and BIP Functionality: Supports free-of-charge compensation coding for Bosch, Denso, Delphi, and Siemens, fully paired with standard BIP (Begin of Injection Period) response time testing.
Massive Factory Master Database: Pre-programmed with 7,725 common rail injector diagnostic profiles and 4,204 dedicated injector coding data paths.
Robust Safety and Hardware Protection: Equipped with responsive short-circuit protection across both software and hardware architectures to maximize machine reliability and operator safety.
Global Operation Interface: The system supports 15 international languages, includes automatic network updates with 1 year of free software upgrades, and integrates TeamViewer for remote assistance.
High Modular Scalability: Offers modular expansion capabilities to test Bosch 4-pin injectors, DRV/HPV control valves, rail pressure sensors, solenoids, and AHE injector dynamic stroke.

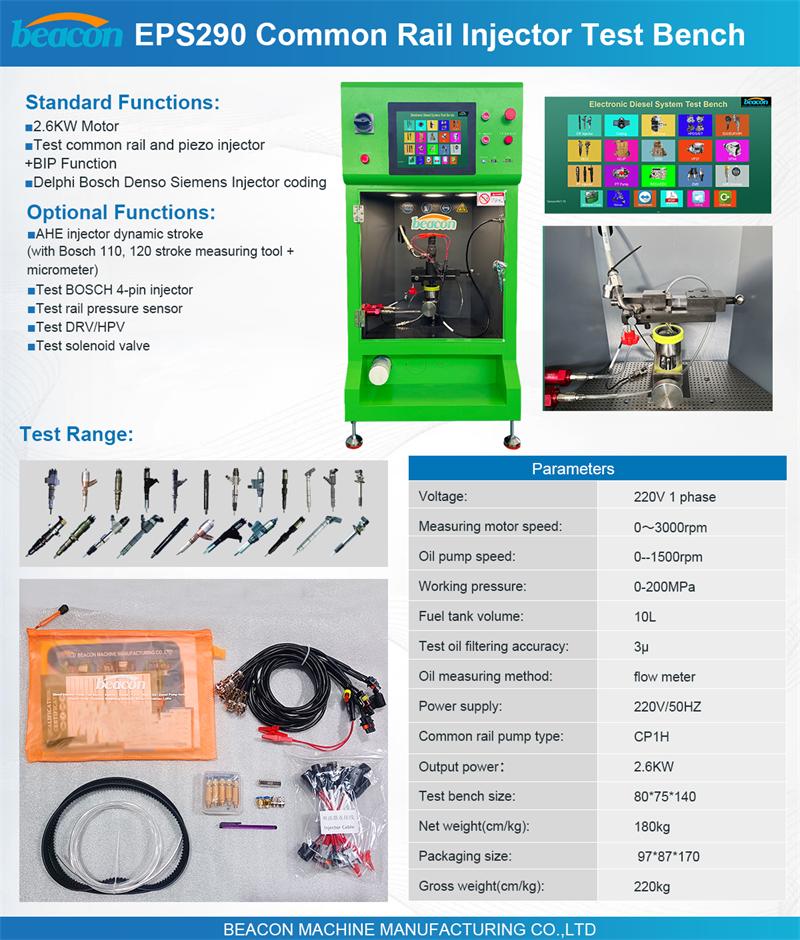

Параметры

Technical Features	Specifications / Standard Configurations
Model	EPS290
Power Output	2.6 kW
Power Supply / Voltage	220V Single-Phase, 50Hz

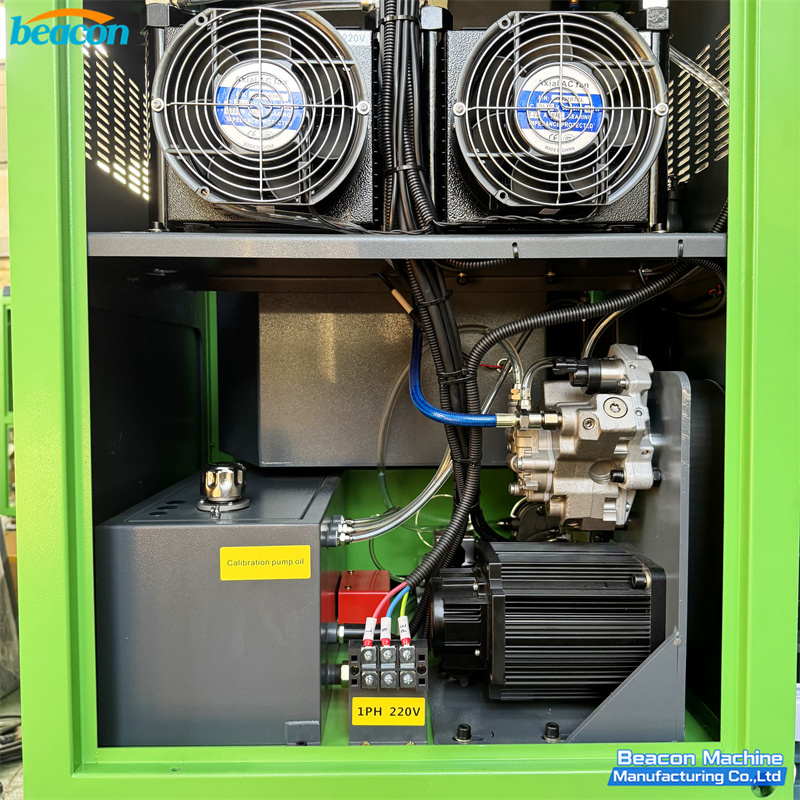

Common Rail Pump Type	Bosch CP1H Pump
Oil Measuring Method	Digital Flow Meter
Measuring Motor Speed	0 to 3000 rpm
Oil Pump Speed	0 to 1500 rpm
Maximum Working Pressure	0 to 200 MPa (0 to 2000 bar)
Fuel Tank Volume	10 Liters
Test Oil Filtering Accuracy	3 μm
Test Bench Dimensions (LWH)	80 x 75 x 140 cm
Net Weight	180 kg
Packaging Size (LWH)	97 x 87 x 170 cm
Gross Weight	220 kg
Standard Functions	Solenoid Valve Injectors, Piezoelectric Injectors, BIP Response Time, Multi-brand Coding
Optional Upgrade Modules	Bosch 4-Pin Injectors, DRV/HPV Testing, Rail Pressure Sensors, Solenoids, AHE Dynamic Stroke
